Successor to the HYBRID PRO.
Improved compatibility and durability, now at a more affordable price!

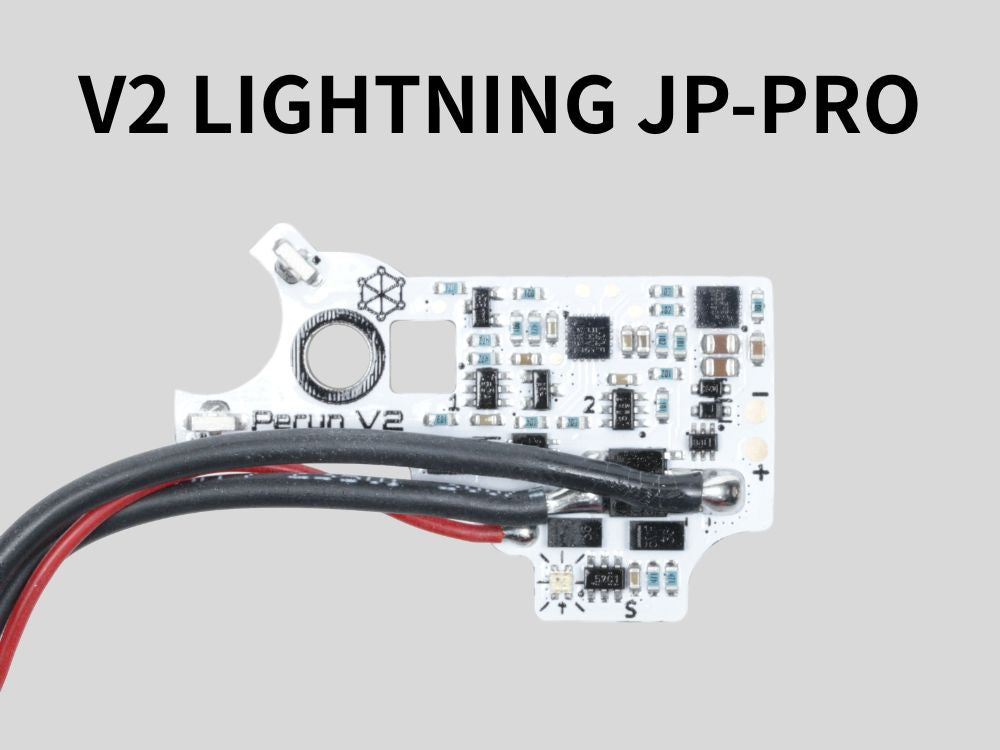

The PERUN V2 Lightning JP-PRO is an electronic trigger unit equipped with optical and magnetic sensors. By replacing the physical switch, movable parts such as switches and cutoff levers are eliminated, thereby removing the risk of failure due to wear and tear.
Both the trigger and selector are detected by magnetic sensors (Hall effect). This ensures stable operation without any influence from external light, gearbox color, or reflections, even with skeletonized cutout receivers.
An optical sensor is used to detect the sector gear, determining its position based on the presence or absence of the cutoff cam.
The single-board design reduces the number of components, simplifying installation and avoiding risks of malfunctions such as poor contact or physical damage.
The MOSFET circuit provides highly efficient current flow, improving semi-auto response and full-auto rate of fire. Equipped with an electronic fuse and self-diagnostic function, a physical fuse is not required. Brushless motors are also supported.
JP-PRO Japan Limited Edition: Features 99-step 2-phase adjustable precocking. Includes a Japanese manual produced by PERUN JAPAN and a 24-month manufacturer's warranty.
T-connector (Deans) Specification: Please use a battery with a T-connector.
【Key changes from HYBRID PRO】
|
HYBRID PRO |
(NEW!) Lightning JP-PRO |
| Selector detection |
Optical (sticker application) |
Magnetic (included selector plate / included magnet application) |
| Sector gear detection |
Optical (detects presence/absence of teeth) |
Optical (detects cutoff cam) |
| Electronic fuse |
Continuous 35A / Instantaneous 200A |
Continuous 40A / Instantaneous 220A |
| Standby current consumption |
All positions 1.5mA |
SAFE 0.4mA / SEMI・AUTO 0.6mA |
| Compatible sector gears |
Only gears with lower gears protruding from the body, such as 32:1, are not supported. |
Compatible with all gears with a cutoff cam. |
| KRYTAC / G&G G2 Gearboxes |
Requires modification for installation |
No modification required |
【Function List】
All functions can be independently set for SEMI/AUTO positions. Settings are made via selector operation and trigger input, and the status can be confirmed by multi-color LED and beeps.
■Firing Modes
Safety, Semi, 2-5 round Burst, Full, and Binary can be assigned to each position as desired. Burst firing will always fire the specified number of rounds with a single trigger pull.
■Active Brake 5-step
Electrically brakes the inertia after firing, improving semi-auto crispness and preventing overtravel. Can be set independently of precocking.
■Precocking 99-step (JP Special Specification)
Consists of a 2-phase adjustment: coarse adjustment 10ms (0-9) and fine adjustment 1ms (0-9), allowing for up to 99 steps of adjustment. Precocking strength is automatically compensated according to battery voltage. Spring release can be performed by holding the trigger for 3 seconds.
■Binary Trigger
Fires one shot when the trigger is pulled and one shot when it is released. This is only effective when semi-auto firing is set. Holding the trigger for 2 seconds will cancel the shot upon release.
■2-Stage Trigger
Different firing modes can be set for a shallow trigger pull and a subsequent full pull. Supports three patterns: semi → burst, semi → full, and burst → full.
■Trigger Sensitivity / ATC 8-step
Adjustable from Lv.1 (6mm) to Lv.8 (0.25mm). The higher the sensitivity, the less the trigger needs to be released after firing to allow the next shot (Adaptive Trigger Control).
■Rate of Fire Reduction 5-step
Reduces the rate of fire only for full-auto and burst. Does not affect the responsiveness of the first shot. Absolutely do not use with brushless motors to prevent damage.
■DMR Mode 5-step
Sets a non-firing period after a shot from 0.25 seconds to 3 seconds in 5 steps. Can also be used to prevent bump firing. Activating this function fixes the firing mode to semi-auto.
■DSG Mode
Correctly reads the special shape of the double sector gear with sensors and optimizes precocking timing.
■Safety and Protection Functions
Equipped with an electronic fuse (continuous 40A / instantaneous 220A), LiPo alarm (automatic cell count detection), self-diagnostic system, and master reset.
